Automatic Mini Desktop Injection Molding Machine abs Processed Injection Machine
Automatic Mini Desktop Injection Molding Machine abs Processed Injection Machine
Regular price
$1.13 USD
Regular price
Sale price
$1.13 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description

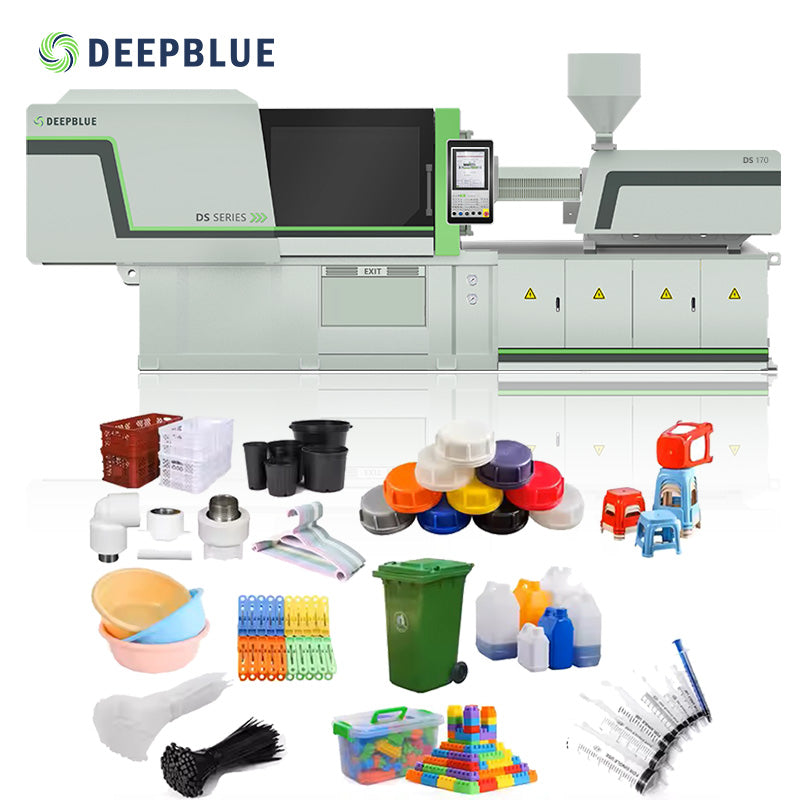

DEEPBLUE Smart Equipments stands at the forefront of the injection molding industry, offering a comprehensive range of Servo Energy Saving Injection Molding Machines with capacities ranging from 60 Tons to 2600 Tons. Designed with cutting-edge technology and a focus on sustainability, these machines deliver outstanding performance while significantly reducing energy consumption, making them ideal for a variety of industrial applications. Diverse Applications Across Industries DEEPBLUE Smart Equipments' injection molding machines are engineered to meet the diverse demands of modern manufacturing. From producing everyday household items to complex components for home appliances, these machines offer unparalleled versatility.
Product Paramenters
|
DS220
|
|||
|
Injection Unit
|
A
|
B
|
C
|
|
Screw Diameter (mm)
|
50
|
55
|
60
|
|
Screw L/D Ratio【L/D】
|
22
|
20
|
18.5
|
|
Theoretical Shot Vol Ume (cm*)
|
510.3
|
617.4
|
734.7
|
|
Injection Weight (g)
|
464.4
|
561.8
|
668.6
|
|
Injection Pressure (Mpa)
|
158
|
132
|
113
|
|
Screw Speed(rpm)
|
112
|
||
|
|
|||
|
Clamp Tonnage (KN)
|
2000
|
||
|
Toggle Stroke (mm)
|
290
|
||
|
Space Between Tie Bars (mm)
|
530*5 30
|
||
|
Max.mold Height (mm)
|
550
|
||
|
Min.mold Height (mm)
|
200
|
||
|
Ejector Stroke (mm)
|
140
|
||
|
Ejector Tonnage (KN)
|
62
|
||
|
Ejector Quantity (PC)
|
5
|
||
|
|
|||
|
MAX.PUMP PRESSURE (Mpa)
|
14
|
||
|
PUMP MOTOR POWER (KW)
|
22
|
||
|
EATER POWER (KW)
|
14.9
|
||
|
MACHINE WEIGHT (T)
|
6.4
|
||
|
Dimensions (mm)
|
6300*1800*2200
|
||
Clamping Unit
01.Optimized Platen Design with high rigidity and enlarged space between tie bars 02. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds 03.New ejection system design with longer ejection stroke, bigger space and better rigidity 04.Hydraulic drivien gear-type mold height adjustion mechanism. 05. linkage structure for front connecting rod increases onnectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit
A short powerful double cylinder injection system and high preecision linear guide rail, with low inertia and high response mechanism to ensure smooth injection, injection and template deformation, ptinmiza- tion design of screw assembly, achieve better plasticizing effect.
Hydraulic System
01. The double proportional compound valve control system pressure & flow, highly sensitive & stable 02.Imported high quality Pump, low in noise, long in lifespan & stable in performance 03. World-famous servo hydraulic system optional, better performance in lower noise & energy saving 04.The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision 05.High performance hydraulic valve, less failure, fast switch, convenient maintenance 06. Low pressure mold protect system, which is more suitable for the precise mould 07. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
Electrical System
Customer need——fast speed, accurate control, easy operation, program for multiple processes, powerful. Solution——upgraded controller, 8''/10''/12'' TFT true color display, 0.25ms of scan time, fully improved operational convenience, multiple processes for your need HONGXUN control system delivers better performance in machine control and adds to the stability of product and machine.
