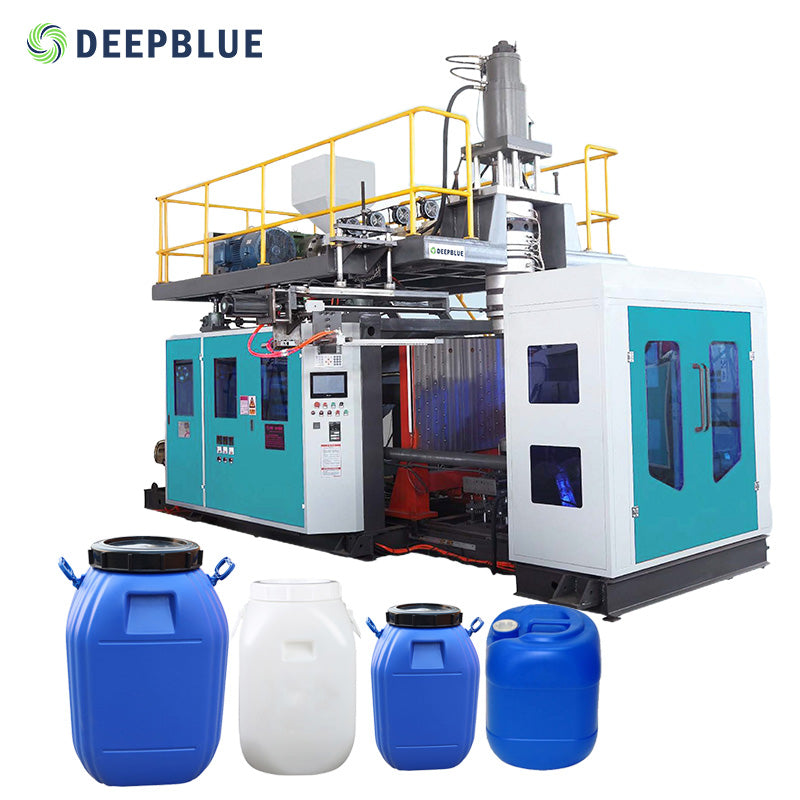

HDPE PE Blow Moulding Machine for Making Plastic Road Fence Yogurt Bottle Container Milk Bottle Container SLBC-100
HDPE PE Blow Moulding Machine for Making Plastic Road Fence Yogurt Bottle Container Milk Bottle Container SLBC-100
Regular price
$1.13 USD
Regular price
Sale price
$1.13 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description
Extrusion blow molding machine is widely used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, detergents, water bottles, milk bottles, oil bottles, plastic balls, cosmetic bottles, lubricant bottles, plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
One-stop service
We specialize in supporting your business through comprehensive market research, product selection, and optimizing factory layouts. Our goal is to maximize your investment by helping you achieve substantial returns.
From initial project consultations to capacity planning and ongoing after-sales support, we deliver a complete service package to meet your needs.
From initial project consultations to capacity planning and ongoing after-sales support, we deliver a complete service package to meet your needs.
Product Paramenters
|
SLBC-100
|
||
|
Specifications
|
||
|
Material
|
|
PE, PP, EVA, ABS,PS...
|
|
Max container capacity
|
L
|
120
|
|
Output(dry cycle)
|
pc/hr
|
360
|
|
Machine Dimension(LxWxH)
|
M
|
6800*3600*5200
|
|
Total weight
|
Ton
|
16T
|
|
Clamping Unit
|
||
|
Clamping force
|
Kn
|
400
|
|
Platen opening stroke
|
mm
|
600 -1400
|
|
platen size(WxH)
|
mm
|
1100*1100
|
|
Max mould size(WxH)
|
mm
|
900*1400
|
|
Mold thickness
|
mm
|
610-880
|
|
Extruder unit
|
||
|
Screw diameter
|
mm
|
100
|
|
Screw L/D ratio
|
L/D
|
25
|
|
Melting capacity
|
Kg/Hr
|
180
|
|
Number of heating zone
|
Kw
|
30
|
|
Extrudedr heating power
|
Zone
|
5
|
|
Extruder driving power
|
Kw
|
50
|
|
Die head
|
||
|
Number of hearting zone
|
Zone
|
5
|
|
Power of die heating
|
Kw
|
25
|
|
Max die-pin diameter
|
mm
|
450
|
|
Power
|
||
|
Wax drive
|
Kw
|
70
|
|
Total power
|
Kw
|
110
|
|
Fan power for screw
|
Kw
|
4
|
|
Air pressure
|
mpa
|
0.8-1.2
|
|
Air consumption
|
m³/min
|
0.8
|
|
Average energy consumption
|
Kw
|
42
|
|
Accumulator capacity
|
L
|
12
|
Servopump
Colorful screeen display with English. Technical setting date saving system controller, to make sure even thickness of finished product. Optimized switches, easily operation.
Hydraulic unit
Famous brand hydraulic valves, proportional control machine pressure, flow, for precious movement.Optimized hydraulic oil system, fast response, precious control motion
Rotary TrimmingConfiguration
The rotating trimming system allows the machine to efficiently and consistently trim products, reducing material waste and enhancing production efficiency.
Servo System
Adpot high efficiency servo motor and pump, saving up to 40% -50% power comsumption, reduce your factory manufacturing cost. low noise and stable working condition.
Hardened reducer
Primarily, it is designed to transmit power efficiently from the motor to the extrusion system while reducing speed and increasing torque.
Extrusion System
High hardness bimetalic screw &barrel for high plasticizing and longer life. High quality gearbox, motor&inverter. Special designed heating band, highly efficiency and less power consumption.
Auxiliary Equipment
We supply our customer blow molding machine, blow molds, and also necessary auxiliary, such as Crusher, Mixer, Feeding machine, Air compressor, Air tank, Water Chiller, Cooling Tower etc. we are offering complete solution, automatic production line
Company Profile
At Deepblue Smart Equipment Co., Ltd., we are leaders in the injection molding machine industry. Our team comprises seasoned professionals from the HAITIAN Group, the world’s number one group for injection machines. With our expertise and commitment to excellence, we deliver top-notch manufacturing solutions to clients globally.
