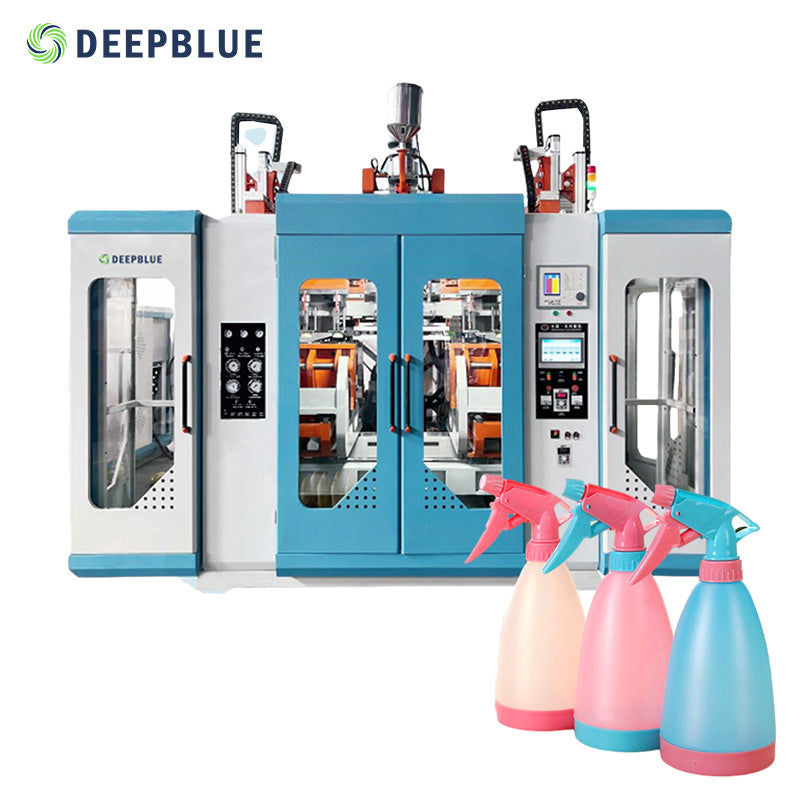

SLBU-80 Flower Sprinkling Plastic Can Watering Can air Pressure Sprayer Blow Molding Machine
SLBU-80 Flower Sprinkling Plastic Can Watering Can air Pressure Sprayer Blow Molding Machine
Regular price
$1.13 USD
Regular price
Sale price
$1.13 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description
Extrusion blow-molding machines are extensively utilized to manufacture a diverse range of hollow plastic containers, including those for food, toys, beverages, pharmaceuticals, chemicals, detergents, water, baby products, oils, cosmetics, lubricants, and more. These machines are favored for their low initial investment, high operational efficiency, rapid processing, and straightforward troubleshooting and maintenance.
One-stop service
Comprehensive Service We are dedicated to enhancing your business with thorough market analysis, tailored product recommendations, and optimized factory layouts. We produce injection molding machines and blow molding machines and other designs
Product Paramenters
|
SLBU-80
|
||
|
Specifications
|
||
|
Material
|
|
PE, PP, EVA, ABS,PS...
|
|
Max container capacity
|
L
|
10
|
|
Number of die
|
Set
|
1.2.3.4.6.8
|
|
Output(dry cycle)
|
pc/hr
|
950*2
|
|
Machine Dimension(LxWxH)
|
mm
|
4600*2600*2600
|
|
Total weight
|
Ton
|
8T
|
|
Clamping Unit
|
||
|
Clamping force
|
Kn
|
86
|
|
Platen opening stroke
|
mm
|
300 -600
|
|
platen size(WxH)
|
mm
|
450*450
|
|
Max mould size(WxH)
|
mm
|
500*450
|
|
Mold thickness
|
mm
|
305-400
|
|
Extruder unit
|
||
|
Screw diameter
|
mm
|
80
|
|
Screw L/D ratio
|
L/D
|
25
|
|
Melting capacity
|
Kg/Hr
|
120
|
|
Number of heating zone
|
Kw
|
20
|
|
Extrudedr heating power
|
Zone
|
3
|
|
Extruder driving power
|
Kw
|
30
|
|
Die head
|
||
|
Number of hearting zone
|
Zone
|
2-5
|
|
Power of die heating
|
Kw
|
6
|
|
Center distance of doubl-die
|
mm
|
160
|
|
Center distance of triple- die
|
mm
|
110
|
|
Center distance of tetra-die
|
mm
|
100
|
|
Center distance of six-die
|
mm
|
80
|
|
Max die-pin diameter
|
mm
|
260
|
|
Power
|
||
|
Wax drive
|
Kw
|
35
|
|
Total power
|
Kw
|
82
|
|
Fan power for screw
|
Kw
|
3.2
|
|
Air pressure
|
mpa
|
0.6
|
|
Air consumption
|
m³/min
|
0.5
|
|
Average energy consumption
|
Kw
|
|
