Auto-Loader
Auto-Loader
Regular price
$350.00 USD
Regular price
Sale price
$350.00 USD
Unit price
per
Couldn't load pickup availability
Specification for Auto loader
- The main unit and the bucket are separated and designed for safety and convenience;
- Microcomputer control operation;
- Independent filter device to facilitate the removal of dust;
- Stainless steel storage barrel, light and durable, good clear material;
- The control box is designed independently and easy to maintain;
- Automatic buzzer alarm protection device for lack of material;
- EU single-segment model configuration digital tube computer board, EU dual-segment model configuration LCD computer board;
- EUH models are equipped with main power switch & LCD display & RS485 networking function
- EUL models are equipped with main power switch & filter pulse spray washing & LCD display & RS485 networking function
- The two-stage model is only suitable for EUH or EUL configuration. The EU digital tube computer board is not equipped with the two- stage model.

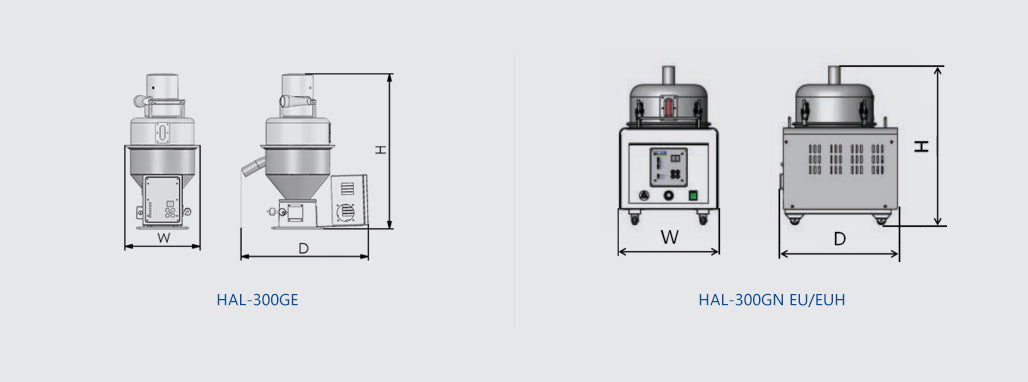

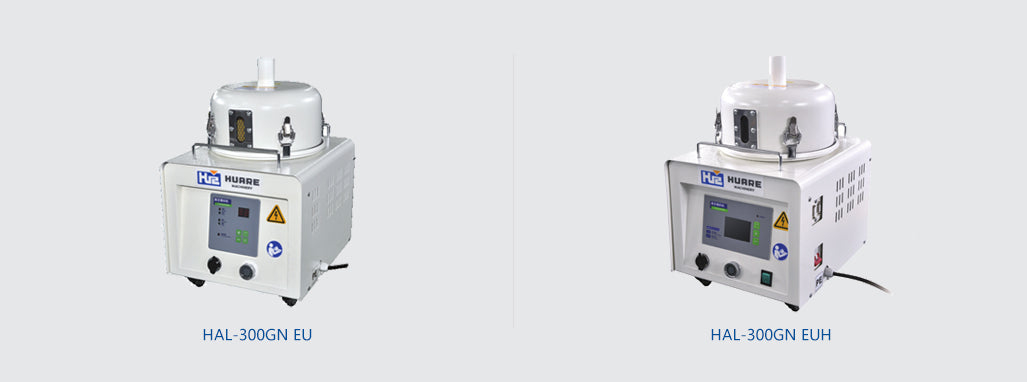

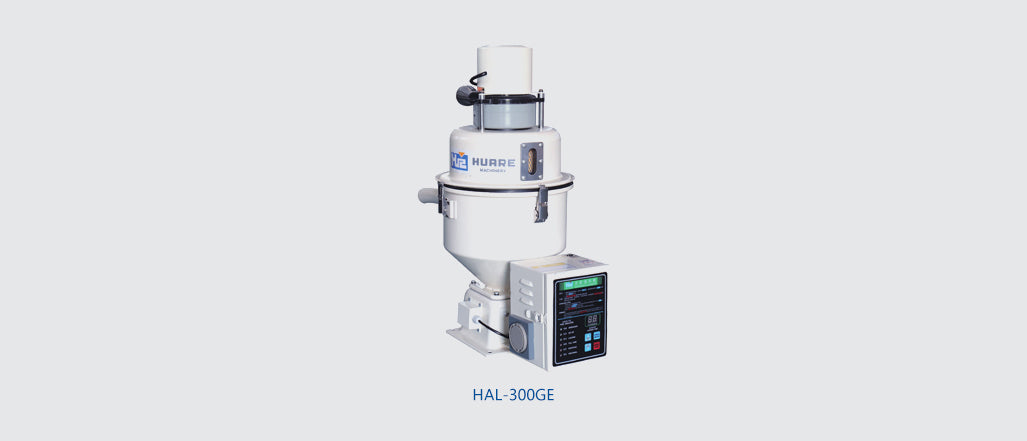

| Type | Unit | HAL -300GE | HAL-300GN EU HAL-300GN EUH |
HAL-1.5P EU HAL-1.5P EUH HAL-1.5P EUL |
HAL-2.5P EU HAL-2.5P EUH HAL-2.5P EUL |
HAL-3P EU HAL-3P EUH HAL-3P EUL |
| Motor type | Carbon brush | Inductive | ||||
| Motor power | kW | 1.1（1￠） | 1.1（3￠） | 1.8（3￠） | 2.2（3￠） | |
| conveying capacity | kg/hr | 350 | 400 | 450 | 550 | 630 |

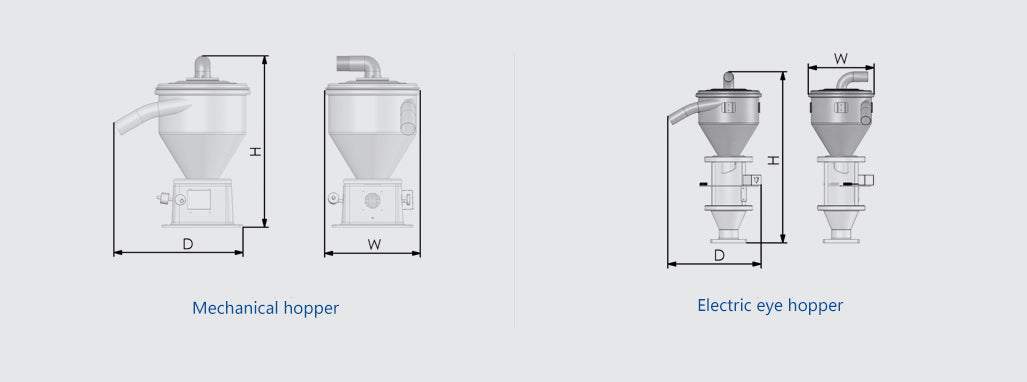

| Matching hopper | MH 6L | MH 6L | MH 6L | MH 12L | MH 24L | |
| Material pipe/Air pipe | Inch | 1.5/1.5 | 1.5/1.5 | 2.0/2.0 | ||
| Weight | kg | 15 | 39 | 76 | 85 | 95 |

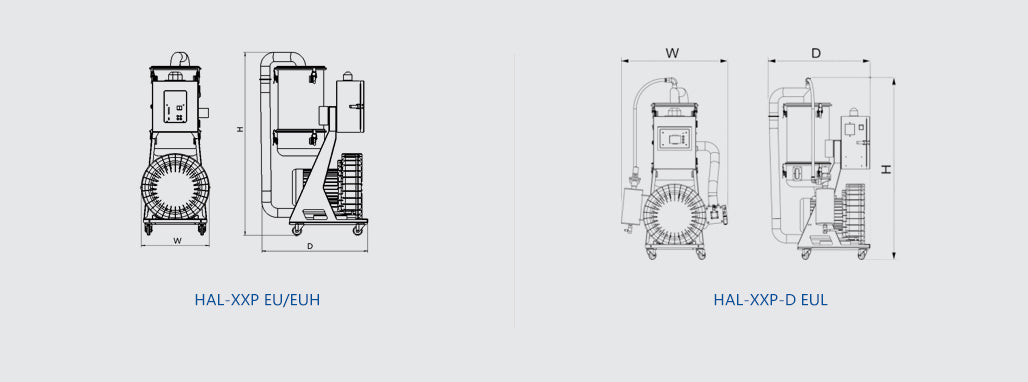

| Dimensions | HAL- XX P EU/EUH | HAL-XX P EUL | ||||
| H | mm | 630 | 530 | 1000 | 1100 | |
| W | mm | 305 | 330 | 350 | 500 | |
| D | mm | 530 | 380 | 600 | 600 | |
Note
- Standard voltage: 300GE AND 300GN 1 Phase, 220V, 50 Hz, other types 3 Phase, 380V, 50 Hz;
- Have any special needs, please contact us.
- Specifications are subject to change without prior notice.
