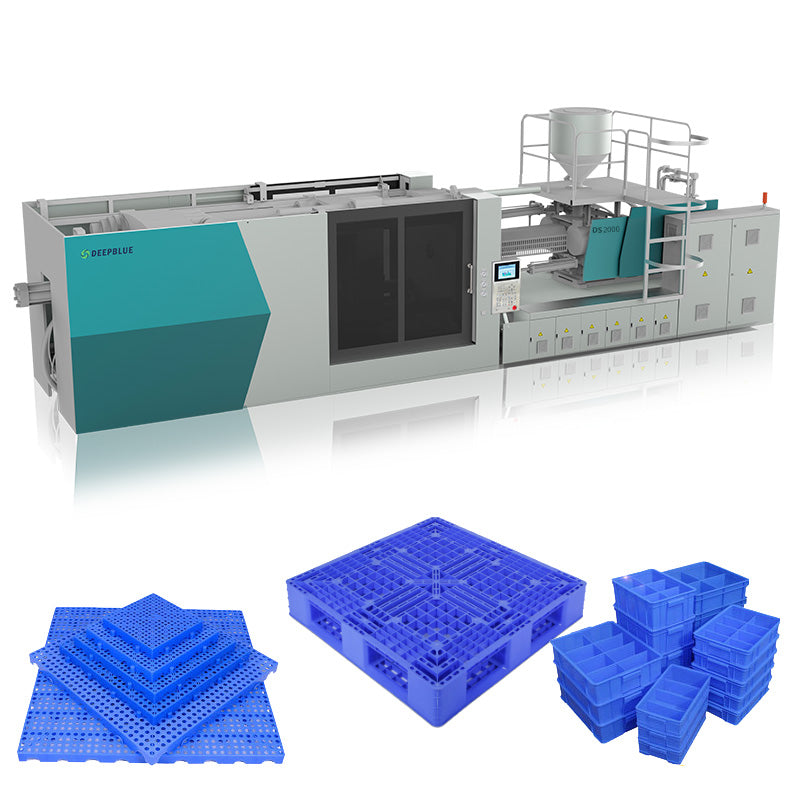

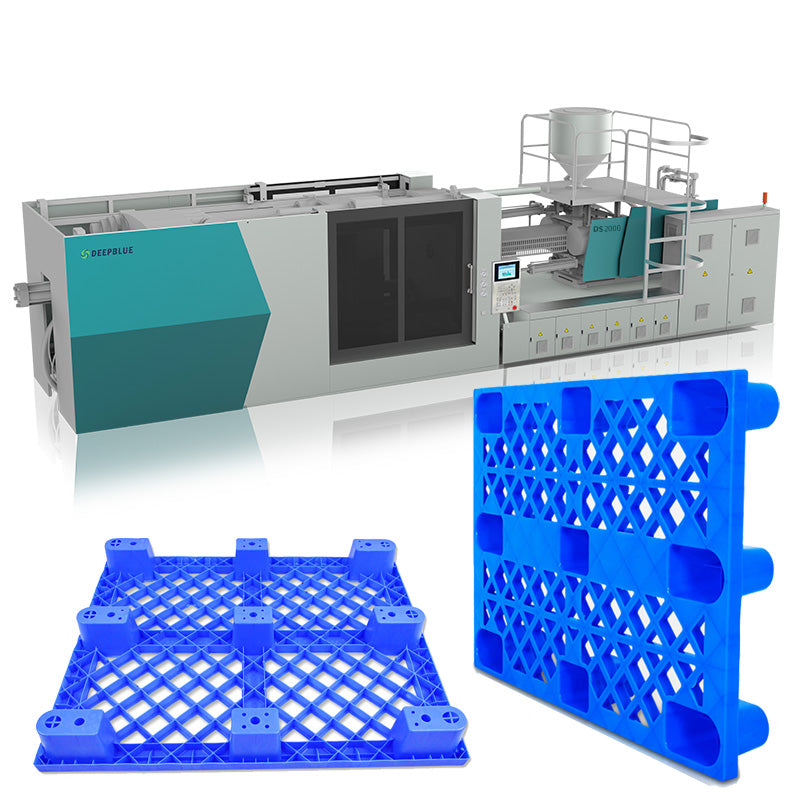

Plastic Pallet Making 2000 Ton Injection Molding Machine
Plastic Pallet Making 2000 Ton Injection Molding Machine
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description
DEEPBLUE Smart Equipments leads the way in the injection molding sector, producing state-of-the-art servo energy-saving plastic injection molding machines. Our premier models, including the 60-ton and 2600-ton variants, are crafted to fulfill the needs of manufacturers worldwide. These machines stand out for their superior performance, energy efficiency, and dependability. By incorporating advanced servo technology, we ensure our machines not only minimize energy consumption but also deliver high precision and operational stability.
One-stop service In addition to our cutting-edge injection molding machines, we offer an all-encompassing service, providing auxiliary equipment and a wide variety of molds. Our machines are capable of processing an extensive range of plastic particles,such as PP, PE, ABS, PA, PET, TPR, EVA, PPS, PVC, PU, and NYLON, making them suitable for diverse industries like automotive,packaging, and consumer goods. With DEEPBLUE, you can count on producing top-tier products with unparalleled efficiency.
Product Paramenters
|
DS2000
|
|||
|
Injection Unit
|
A
|
B
|
C
|
|
Screw Diameter (mm)
|
130
|
140
|
150
|
|
Screw L/D Ratio【L/D】
|
25.8
|
24
|
22.4
|
|
Theoretical Shot Vol Ume (cm*)
|
9021
|
10462
|
12010
|
|
Injection Weight (g)
|
8525
|
9887
|
11349
|
|
Injection Pressure (Mpa)
|
190
|
163
|
142
|
|
Screw Speed(rpm)
|
80
|
||
|
CLAMPING UNIT
|
|||
|
Clamp Tonnage (KN)
|
22000
|
||
|
Toggle Stroke (mm)
|
1650
|
||
|
Space Between Tie Bars (mm)
|
1650*1650
|
||
|
Max.mold Height (mm)
|
1620
|
||
|
Min.mold Height (mm)
|
800
|
||
|
Ejector Stroke (mm)
|
420
|
||
|
Ejector Tonnage (KN)
|
490
|
||
|
Ejector Quantity (PC)
|
21
|
||
|
OTHER
|
|||
|
MAX.PUMP PRESSURE (Mpa)
|
17
|
||
|
PUMP MOTOR POWER (KW)
|
45+45+45
|
||
|
EATER POWER (KW)
|
110.7
|
||
|
MACHINE WEIGHT (T)
|
148
|
||
|
Dimensions (mm)
|
15500*3750*4500
|
||
Clamping Unit
01.Optimized Platen Design with high rigidity and enlarged space between tie bars 02. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds 03.New ejection system design with longer ejection stroke, bigger space and better rigidity 04.Hydraulic drivien gear-type mold height adjustion mechanism. 05. linkage structure for front connecting rod increases onnectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit
A short powerful double cylinder injection system and high preecision linear guide rail, with low inertia and high response mechanism to ensure smooth injection, injection and template deformation, ptinmiza- tion design of screw assembly, achieve better plasticizing effect.
Hydraulic System
01. The double proportional compound valve control system pressure & flow, highly sensitive & stable 02.Imported high quality Pump, low in noise, long in lifespan & stable in performance 03. World-famous servo hydraulic system optional, better performance in lower noise & energy saving 04.The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision 05.High performance hydraulic valve, less failure, fast switch, convenient maintenance 06. Low pressure mold protect system, which is more suitable for the precise mould 07. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
Electrical System
Customer need——fast speed, accurate control, easy operation, program for multiple processes, powerful. Solution——upgraded controller, 8''/10''/12'' TFT true color display, 0.25ms of scan time, fully improved operational convenience, multiple processes for your need HONGXUN control system delivers better performance in machine control and adds to the stability of product and machine.
