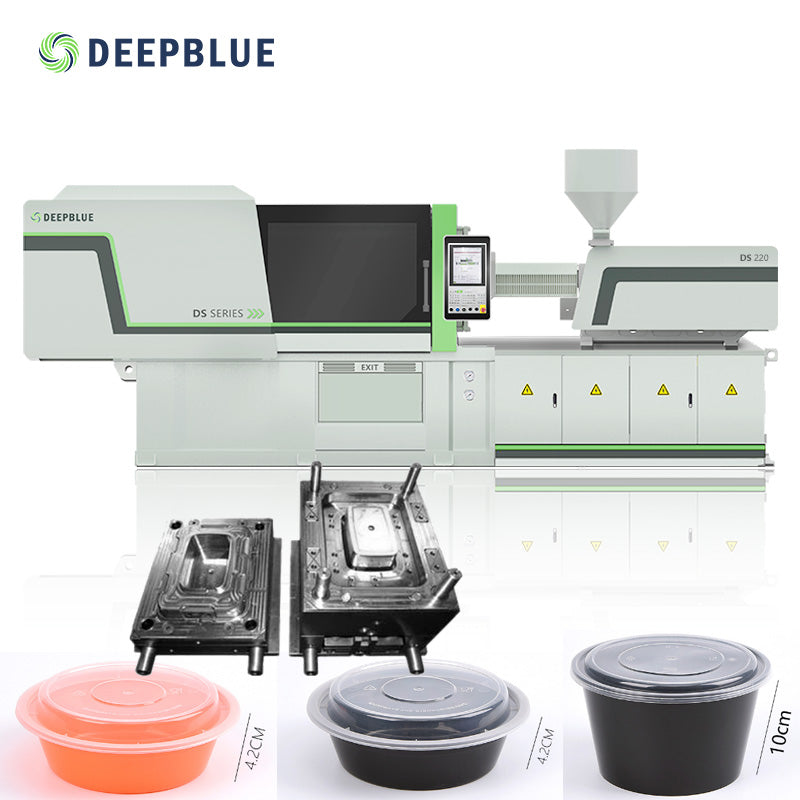

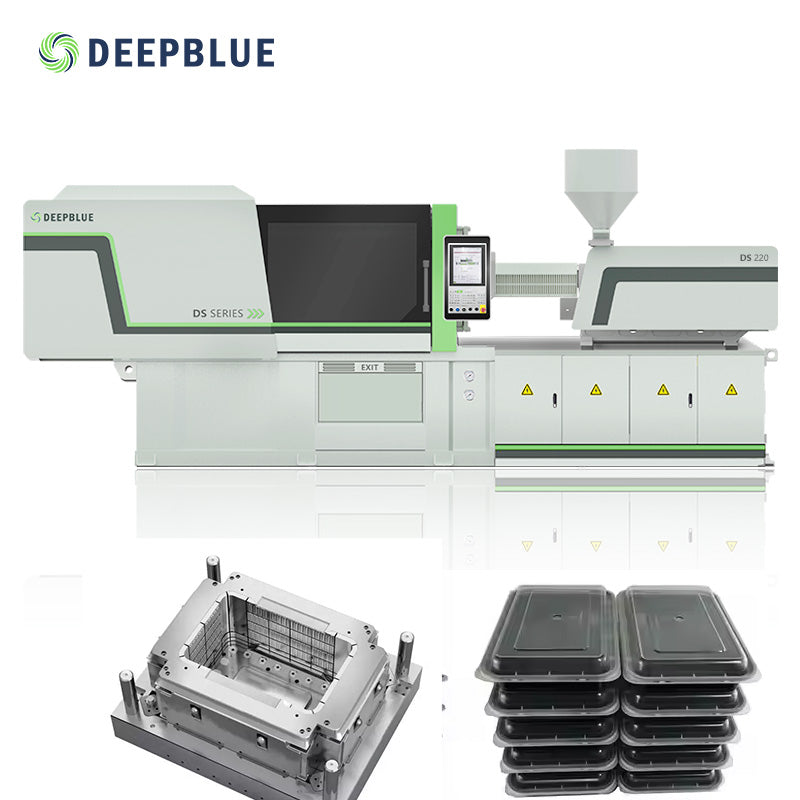

Disposable Plastic Lunch Box Products Injection Molding Mold Machine Inject Plastique
Disposable Plastic Lunch Box Products Injection Molding Mold Machine Inject Plastique
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description
DEEPBLUE Smart Equipments, specializing in manufacturing, offers a range of 60-ton to 2600-ton servo energy-saving injection molding machines.Our one-stop service encompasses the production of innovative molds and auxiliary equipment, as well as handling various plastics like PP, PE, ABS, PA, and PET. These advanced machines, known for their excellent performance, energy efficiency, and durability, have earned DEEPBLUE a strong reputation among global manufacturers.
DeepBlue Smart Equipment is renowned for manufacturing high-quality injection molding machines and blow molding machines, which find extensive applications across various industries, including daily necessities, packaging, footwear, Food Container, and electrical appliances.
Product Paramenters
|
DS170
|
|||
|
Injection Unit
|
A
|
B
|
C
|
|
Screw Diameter (mm)
|
40
|
45
|
50
|
|
Screw L/D Ratio【L/D】
|
24
|
22
|
20
|
|
Theoretical Shot Vol Ume (cm*)
|
332.3
|
381.5
|
471
|
|
Injection Weight (g)
|
302.4
|
347.2
|
428.6
|
|
Injection Pressure (Mpa)
|
176
|
154
|
123
|
|
CLAMPING UNIT
|
|||
|
Clamp Tonnage (KN)
|
1700
|
||
|
Toggle Stroke (mm)
|
430
|
||
|
Space Between Tie Bars (mm)
|
480*480
|
||
|
Max.mold Height (mm)
|
500
|
||
|
Min.mold Height (mm)
|
180
|
||
|
Ejector Stroke (mm)
|
130
|
||
|
Ejector Tonnage (KN)
|
46
|
||
|
Ejector Quantity (PC)
|
5
|
||
|
0THERS
|
|||
|
MAX.PUMP PRESSURE (Mpa)
|
14
|
||
|
PUMP MOTOR POWER (KW)
|
18.5
|
||
|
EATER POWER (KW)
|
10.8
|
||
|
MACHINE WEIGHT (T)
|
4.5
|
||
|
Dimensions (mm)
|
5000*1500*1900
|
||
Clamping Unit
01.Optimized Platen Design with high rigidity and enlarged space between tie bars 02. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds 03.New ejection system design with longer ejection stroke, bigger space and better rigidity 04.Hydraulic drivien gear-type mold height adjustion mechanism. 05. linkage structure for front connecting rod increases onnectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit
A short powerful double cylinder injection system and high preecision linear guide rail, with low inertia and high response mechanism to ensure smooth injection, injection and template deformation, ptinmiza- tion design of screw assembly, achieve better plasticizing effect.
Hydraulic System
01. The double proportional compound valve control system pressure & flow, highly sensitive & stable 02.Imported high quality Pump, low in noise, long in lifespan & stable in performance 03. World-famous servo hydraulic system optional, better performance in lower noise & energy saving 04.The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision 05.High performance hydraulic valve, less failure, fast switch, convenient maintenance 06. Low pressure mold protect system, which is more suitable for the precise mould 07. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation
Electrical System
Customer need——fast speed, accurate control, easy operation, program for multiple processes, powerful. Solution——upgraded controller, 8''/10''/12'' TFT true color display, 0.25ms of scan time, fully improved operational convenience, multiple processes for your need HONGXUN control system delivers better performance in machine control and adds to the stability of product and machine.
