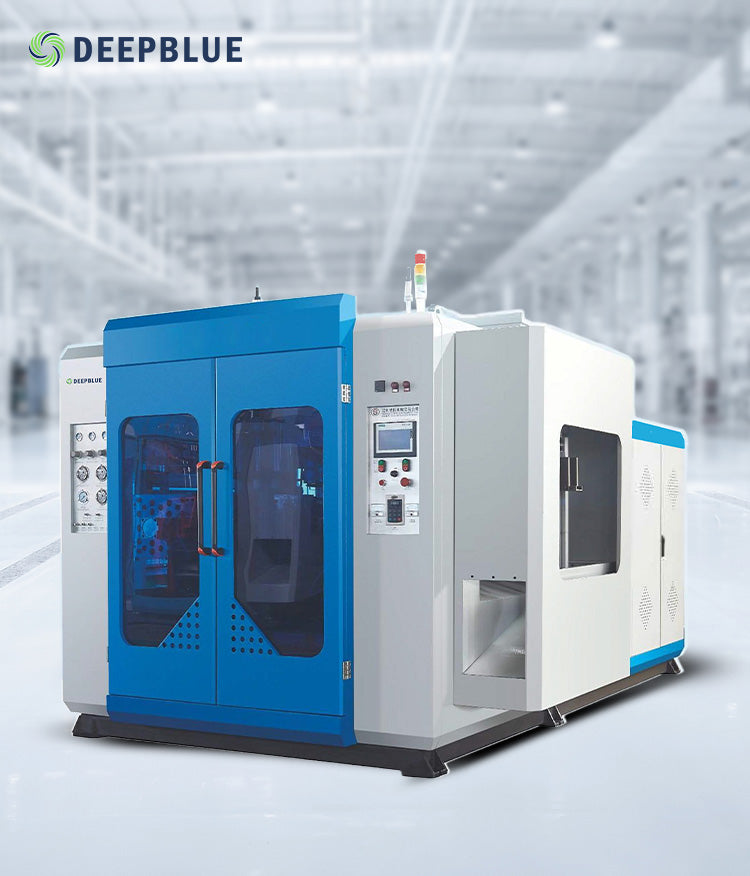

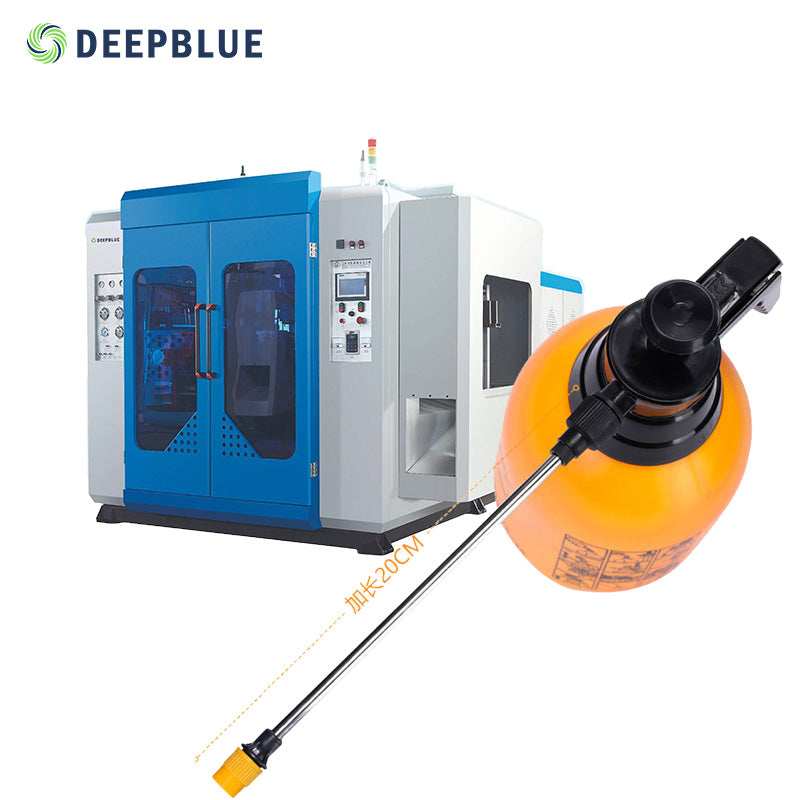

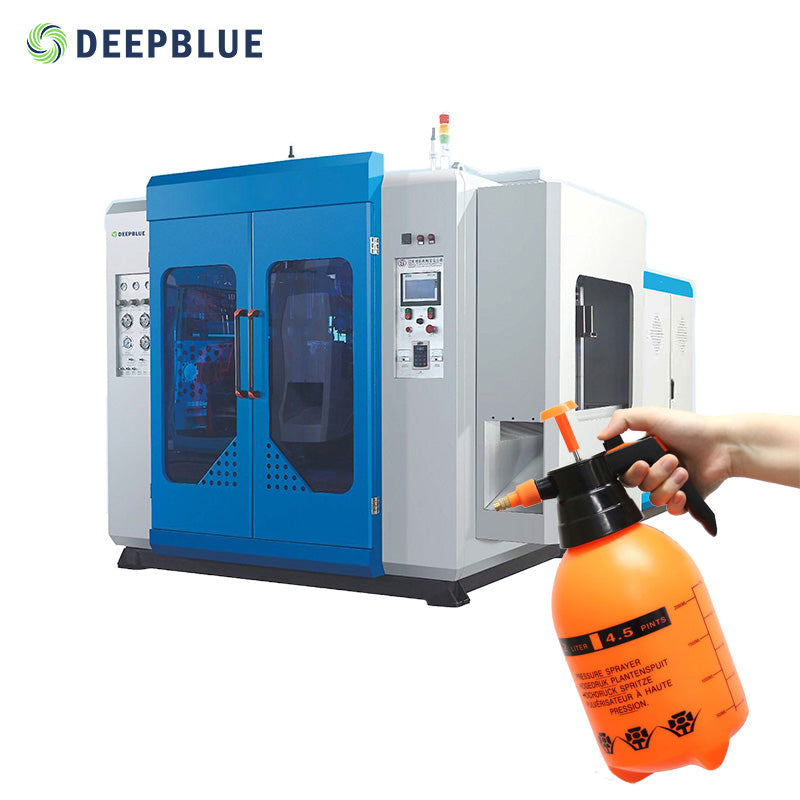

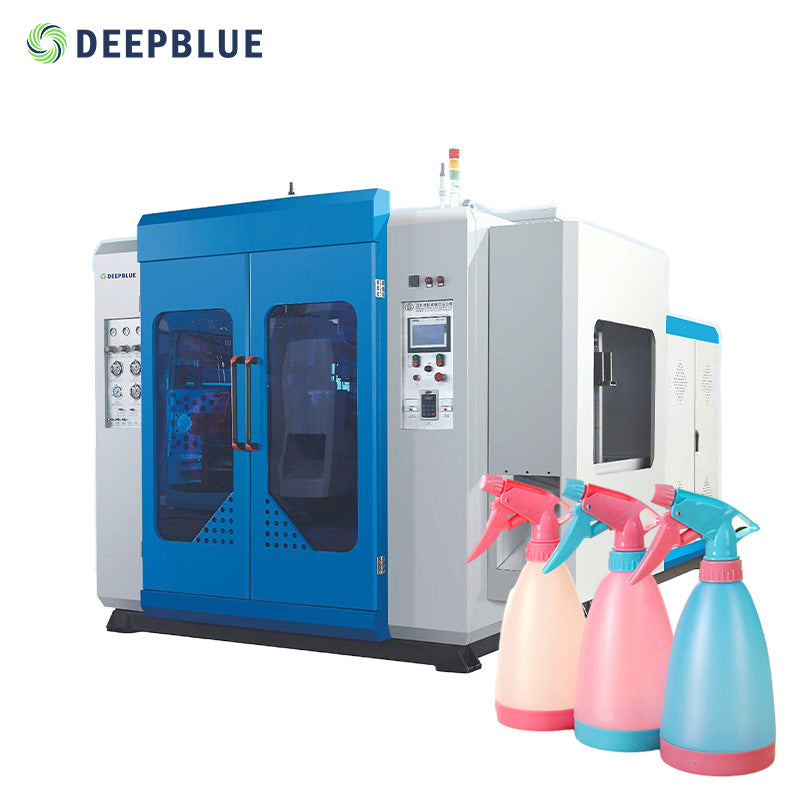

SLBU-80 Plastic Bottle Blow Molding Machine Semi-automatic Pet Bottle Blow Molding Machine Semi-auto Blow Molding Machines
SLBU-80 Plastic Bottle Blow Molding Machine Semi-automatic Pet Bottle Blow Molding Machine Semi-auto Blow Molding Machines
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description
Extrusion blow-molding machines are extensively utilized to manufacture a diverse range of hollow plastic containers, including those for food, toys, beverages, pharmaceuticals, chemicals, detergents, water, baby products, oils, cosmetics, lubricants, and more. These machines are favored for their low initial investment, high operational efficiency, rapid processing, and straightforward troubleshooting and maintenance.
One-stop service
Comprehensive Service We are dedicated to enhancing your business with thorough market analysis, tailored product recommendations, and optimized factory layouts. We produce injection molding machines and blow molding machines and other designs
Product Paramenters
|
SLBU-80
|
||
|
Specifications
|
||
|
Material
|
|
PE, PP, EVA, ABS,PS...
|
|
Max container capacity
|
L
|
10
|
|
Number of die
|
Set
|
1.2.3.4.6.8
|
|
Output(dry cycle)
|
pc/hr
|
950*2
|
|
Machine Dimension(LxWxH)
|
mm
|
4600*2600*2600
|
|
Total weight
|
Ton
|
8T
|
|
Clamping Unit
|
||
|
Clamping force
|
Kn
|
86
|
|
Platen opening stroke
|
mm
|
300 -600
|
|
platen size(WxH)
|
mm
|
450*450
|
|
Max mould size(WxH)
|
mm
|
500*450
|
|
Mold thickness
|
mm
|
305-400
|
|
Extruder unit
|
||
|
Screw diameter
|
mm
|
80
|
|
Screw L/D ratio
|
L/D
|
25
|
|
Melting capacity
|
Kg/Hr
|
120
|
|
Number of heating zone
|
Kw
|
20
|
|
Extrudedr heating power
|
Zone
|
3
|
|
Extruder driving power
|
Kw
|
30
|
|
Die head
|
||
|
Number of hearting zone
|
Zone
|
2-5
|
|
Power of die heating
|
Kw
|
6
|
|
Center distance of doubl-die
|
mm
|
160
|
|
Center distance of triple- die
|
mm
|
110
|
|
Center distance of tetra-die
|
mm
|
100
|
|
Center distance of six-die
|
mm
|
80
|
|
Max die-pin diameter
|
mm
|
260
|
|
Power
|
||
|
Wax drive
|
Kw
|
35
|
|
Total power
|
Kw
|
82
|
|
Fan power for screw
|
Kw
|
3.2
|
|
Air pressure
|
mpa
|
0.6
|
|
Air consumption
|
m³/min
|
0.5
|
|
Average energy consumption
|
Kw
|
22
|
Extrusion blow molding machines are essential for creating a wide range of hollow plastic containers, including those for food, beverages, cosmetics, pharmaceuticals, and cleaning products. （Suitable for multiple sizes）
Servopump
Colorful screeen display with English. Technical setting date saving system controller, to make sure even thickness of finished product. Optimized switches, easily operation.
Hydraulic unit
Famous brand hydraulic valves, proportional control machine pressure, flow, for precious movement.Optimized hydraulic oil system, fast response, precious control motion
Rotary TrimmingConfiguration
The rotating trimming system allows the machine to efficiently and consistently trim products, reducing material waste and enhancing production efficiency.
Servo System
Adpot high efficiency servo motor and pump, saving up to 40% -50% power comsumption, reduce your factory manufacturing cost. low noise and stable working condition.
Hardened reducer
Primarily, it is designed to transmit power efficiently from the motor to the extrusion system while reducing speed and increasing torque.
Extrusion System
High hardness bimetalic screw &barrel for high plasticizing and longer life. High quality gearbox, motor&inverter. Special designed heating band, highly efficiency and less power consumption.
Auxiliary Equipment
We supply our customer blow molding machine, blow molds, and also necessary auxiliary, such as Crusher, Mixer, Feeding machine, Air compressor, Air tank, Water Chiller, Cooling Tower etc. we are offering complete solution, automatic production line
