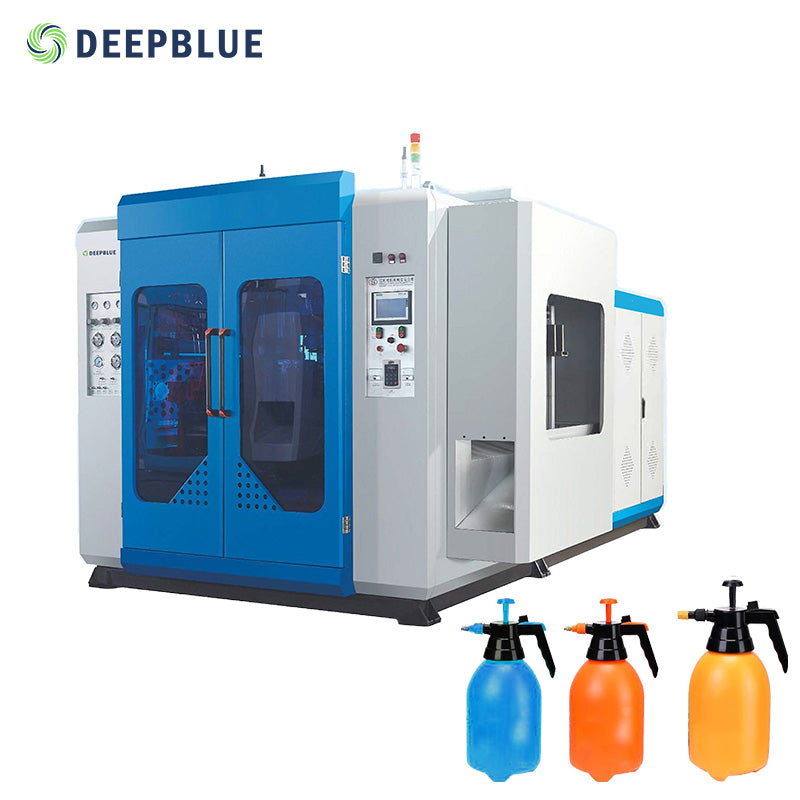

SLBU-90 Flower Sprinkling Plastic Can Watering Can air Pressure Sprayer Injection Molding Machine
SLBU-90 Flower Sprinkling Plastic Can Watering Can air Pressure Sprayer Injection Molding Machine
Regular price
$1.13 USD
Regular price
Sale price
$1.13 USD
Unit price
per
Tax included.
Couldn't load pickup availability
Products Description
Extrusion blow - molding machines are widely used to produce various hollow plastic containers for food, toys, beverages, pharmaceuticals, chemical products, detergents, water bottles, baby bottles, oil bottles, plastic balls, cosmetic bottles, lubricant bottles, and plastic containers. These machines have the advantages of low investment, high efficiency, fast and safe operation, easy troubleshooting, and maintenance.
One-stop service
We specialize in supporting your business through comprehensive market research, product selection, and optimizing factory layouts. Our goal is to maximize your investment by helping you achieve substantial returns.
From initial project consultations to capacity planning and ongoing after-sales support, we deliver a complete service package to meet your needs.
From initial project consultations to capacity planning and ongoing after-sales support, we deliver a complete service package to meet your needs.
Product Paramenters
|
SLUE-90
|
||
|
Specifications
|
||
|
Material
|
|
PE, PP, EVA, ABS,PS...
|
|
Max container capacity
|
L
|
5x2
|
|
Number of die
|
Set
|
2
|
|
Output(dry cycle)
|
pc/hr
|
1000
|
|
Machine Dimension(LxWxH)
|
mm
|
5000*3200*2800
|
|
Total weight
|
Ton
|
11T
|
|
Clamping Unit
|
||
|
Clamping force
|
Kn
|
360
|
|
Platen opening stroke
|
mm
|
300 -650
|
|
platen size(WxH)
|
mm
|
520*470
|
|
Max mould size(WxH)
|
mm
|
520*450
|
|
Mold thickness
|
mm
|
255-350
|
|
Extruder unit
|
||
|
Screw diameter
|
mm
|
90
|
|
Screw L/D ratio
|
L/D
|
25
|
|
Melting capacity
|
Kg/Hr
|
140
|
|
Number of heating zone
|
Kw
|
30
|
|
Extrudedr heating power
|
Zone
|
5
|
|
Extruder driving power
|
Kw
|
37（45）
|
|
Die head
|
||
|
Number of hearting zone
|
Zone
|
2-5
|
|
Power of die heating
|
Kw
|
8
|
|
Center distance of doubl-die
|
mm
|
260
|
|
Center distance of triple- die
|
mm
|
220
|
|
Center distance of tetra-die
|
mm
|
125
|
|
Center distance of six-die
|
mm
|
80
|
|
Max die-pin diameter
|
mm
|
280
|
|
Power
|
||
|
Wax drive
|
Kw
|
50
|
|
Total power
|
Kw
|
96
|
|
Fan power for screw
|
Kw
|
3.6
|
|
Air pressure
|
mpa
|
0.8-1.0
|
|
Air consumption
|
m³/min
|
0.6
|
|
Average energy consumption
|
Kw
|
42
|
